使用树莓派开启HomeKit智能家居系统 篇十三：将小米电视通过 Node-RED 接入 HomeKit

创作立场声明：无偿分享，整理自我自己家的HomeKit改造上一篇文章中我们已经安装了 Node-RED，本文讲如何接入小米电视。

HomeKit

实现功能：关闭电视、方向键、菜单键、返回键、切换常用APP、用 Siri 调整音量

无法实现：回到主页、打开电视

安装节点

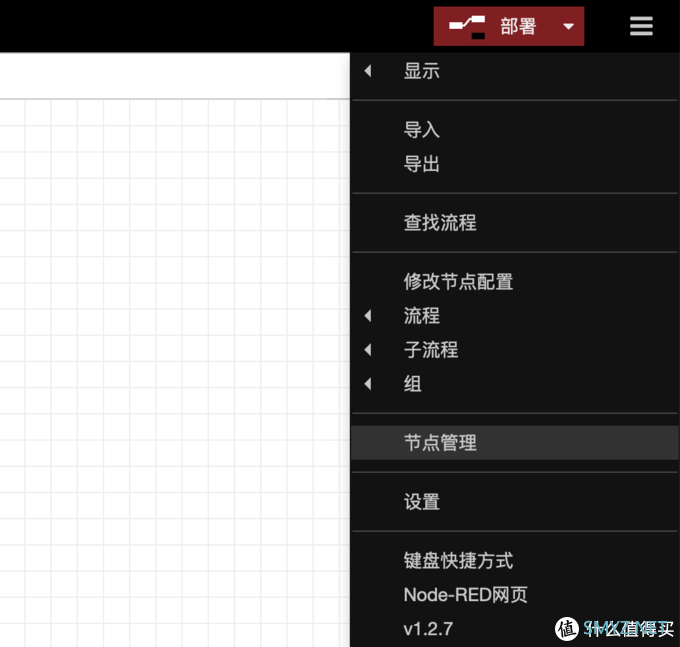

通过 IP:1880进入 Node-RED，点击右上角三个横杠，选择“节点管理”。

节点管理

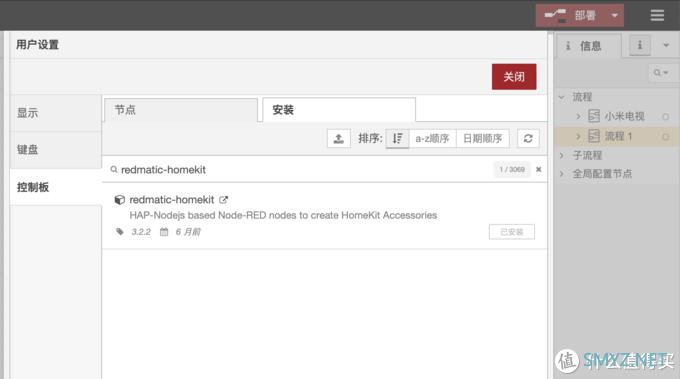

点击“安装”，搜索 redmatic-homekit 节点，安装。

安装节点

绑定MAC与IP

进入路由器后台，绑定电视机的MAC地址和IP，否则IP发生变化会失效，可以参考之前的文章。

使用树莓派开启HomeKit智能家居系统 篇七：将Yeelight吸顶灯、台灯接入Home Assistant和HomeKit盘点你心中的年度好物，分享属于你的难忘故事！12月15日-1月22日参加#2020值得总结#征稿活动，发文至社区即有50金币奖励，最高可获得1000元京东E卡！岁月不会辜负每一个用心生活的人，让我们一起回顾跌宕起伏的2020年。还等什么，快点击查看活动详情！Yeelight新款的吸顶灯和米家台灯1sBrianTffff| 赞13 评论15 收藏80查看详情

导入json

下面直接给出要用到的json代码

[{"id":"8658c195.25121","type":"tab","label":"小米电视","disabled":false,"info":""},{"id":"2ac213f9.afe504","type":"debug","z":"8658c195.25121","name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"true","targetType":"full","x":610,"y":420,"wires":[]},{"id":"2909301a.3b9a28","type":"switch","property":"topic","propertyType":"msg","rules":[{"t":"eq","v":"PowerModeSelection","vt":"str"},{"t":"eq","v":"InputSource","v":"Active","v":"VolumeSelector","v":"RemoteKey","vt":"str"}],"checkall":"true","repair":false,"outputs":5,"x":810,"y":300,"wires":[["70a0b6eb.5779d8"],["36c4bd9b.913482"],["53abe661.a837a"],["647b93de.cf6fbc"],["12ba5907.55878f"]]},{"id":"53abe661.a837a","name":"开关机","property":"payload","rules":[{"t":"false"},{"t":"true"}],"outputs":2,"x":1010,"y":260,"wires":[["540f32be.c82b14"],["e18fb354.e83f78"]]},{"id":"36c4bd9b.913482","name":"输入源","v":"主页","v":"云视听极光","v":"CIBN酷喵","v":"无线投屏","outputs":4,"y":200,"wires":[["7d4e8f78.6da858"],["d17567b9.1464e"],["819bdaa6.ab3a8"],["dfa1a8ff.44bfa8"]],"outputLabels":["","","爱奇艺"]},{"id":"12ba5907.55878f","name":"功能键","v":"PLAY_PAUSE","v":"SELECT","v":"BACK","v":"INFORMATION","v":"ARROW_RIGHT","v":"ARROW_LEFT","v":"ARROW_UP","v":"ARROW_DOWN","outputs":8,"y":520,"wires":[["bac76e62.2891e"],["bac76e62.2891e"],["6a1c37de.6b89"],["eaa8e575.80e928"],["35fb6a4.b22cc96"],["d6a1c7a6.b56b08"],["6ab2c6b2.2ab9c"],["d6912780.9666f8"]],"outputLabels":["暂停","确认","返回","信息","向右","向左","向上","向下"]},{"id":"6ab2c6b2.2ab9c","type":"http request","name":"上","method":"GET","ret":"txt","paytoqs":false,"url":"http://{{{ip}}}:6095/controller?action=keyevent&keycode=up","tls":"","persist":false,"proxy":"","authType":"basic","x":1210,"y":600,"wires":[[]]},{"id":"d6912780.9666f8","name":"下","url":"http://{{{ip}}}:6095/controller?action=keyevent&keycode=down","y":640,{"id":"d6a1c7a6.b56b08","name":"左","url":"http://{{{ip}}}:6095/controller?action=keyevent&keycode=left","y":560,{"id":"35fb6a4.b22cc96","name":"右","url":"http://{{{ip}}}:6095/controller?action=keyevent&keycode=right",{"id":"eaa8e575.80e928","name":"菜单","url":"http://{{{ip}}}:6095/controller?action=keyevent&keycode=menu","y":480,{"id":"6a1c37de.6b89","name":"返回","paytoqs":"ignore","url":"http://{{{ip}}}:6095/controller?action=keyevent&keycode=back","y":440,{"id":"bac76e62.2891e","name":"确定","url":"http://{{{ip}}}:6095/controller?action=keyevent&keycode=enter","y":400,{"id":"540f32be.c82b14","name":"电源","url":"http://{{{ip}}}:6095/controller?action=keyevent&keycode=power","y":240,"wires":[["ed279dbc.01eee"]]},{"id":"a8f8c766.3296c","type":"change","name":"设定电视 IP","rules":[{"t":"set","p":"ip","pt":"msg","to":"192.168.31.107","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":630,"y":500,"wires":[["2909301a.3b9a28","dfe94121.751d78"]]},{"id":"6eacdbbe.aa7d04","type":"redmatic-homekit-tv","name":"小米电视","username":"AB:22:3D:40:49:AD","pincode":"886-50-223","port":"50335","inputsources":[{"name":"主页","type":1},{"name":"云视听极光","type":10},{"name":"CIBN酷喵",{"name":"无线投屏","type":8}],"x":440,"y":460,"wires":[["a8f8c766.3296c","2ac213f9.afe504"]]},{"id":"8808a79c.6a9de8","name":"切换应用","url":"http://{{{ip}}}:6095/controller?action=startapp&type=packagename&packagename={{{app}}}","x":1440,"y":40,{"id":"7d4e8f78.6da858","name":"主页","p":"app","to":"com.mitv.tvhome","y":80,"wires":[["8808a79c.6a9de8"]]},{"id":"b0c2dd2e.83bd7","type":"inject","name":"状态","props":[{"p":"payload"},{"p":"topic","repeat":"60","crontab":"","once":true,"onceDelay":0.1,"topic":"Active","payload":"false","payloadType":"bool","x":170,"y":340,"wires":[["bcb8edb.d03d39"]]},{"id":"e75fa169.d2d108","name":"检查状态","url":"http://{{{ip}}}:6095/request?action=isalive","x":260,"wires":[["6b1fbe50.155f78"]]},{"id":"bcb8edb.d03d39","x":230,"y":380,"wires":[["e75fa169.d2d108"]]},{"id":"6b1fbe50.155f78","type":"function","func":"var code=msg.statusCode;nif( code != 200 )n{nmsg.payload=false;n}nelsen{nmsg.payload=truen n}nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","x":290,"wires":[["6eacdbbe.aa7d04"]]},{"id":"d17567b9.1464e","name":"云视听极光","to":"com.ktcp.video","x":1230,"y":120,{"id":"819bdaa6.ab3a8","name":"CIBN酷喵","to":"com.cibn.tv","x":1220,"y":160,{"id":"e18fb354.e83f78","y":280,{"id":"dfa1a8ff.44bfa8","name":"无线投屏","to":"com.xiaomi.mitv.smartshare",{"id":"70a0b6eb.5779d8","name":"系统设置","to":"com.xiaomi.mitv.settings","x":1020,{"id":"dfe94121.751d78","name":"查看app名称","url":"http://{{{ip}}}:6095/controller?action=getinstalledapp&count=999&changeIcon=1","x":830,"y":680,"wires":[["d135a9bc.335e68"]]},{"id":"5a7c7f06.f424c8","name":"查询 APP 名称","repeat":"","once":false,"topic":"","payload":"","payloadType":"date","x":420,"y":540,"wires":[["a8f8c766.3296c"]]},{"id":"d135a9bc.335e68","type":"json","pretty":false,"x":850,"y":720,"wires":[["a03f6f5.b1f9a1"]]},{"id":"a03f6f5.b1f9a1","name":"获取 APP 名称","statusVal":"","statusType":"auto","x":920,"y":760,{"id":"647b93de.cf6fbc","name":"音量","v":"VOLUMEUP","v":"VOLUMEDOWN","wires":[["dde64b14.8151a8"],["240e0ccd.e0cff4"]]},{"id":"dde64b14.8151a8","name":"音量 +","url":"http://{{{ip}}}:6095/controller?action=keyevent&keycode=volumeup","y":320,{"id":"240e0ccd.e0cff4","name":"音量 -","url":"http://{{{ip}}}:6095/controller?action=keyevent&keycode=volumedown","y":360,{"id":"7955fcb1.d3c0e4","x":1510,{"id":"ed279dbc.01eee","type":"delay","pauseType":"delay","timeout":"1","timeoutUnits":"seconds","rate":"1","nbRateUnits":"1","rateUnits":"second","randomFirst":"1","randomLast":"5","randomUnits":"seconds","drop":false,"x":1360,"wires":[["7955fcb1.d3c0e4"]]}]

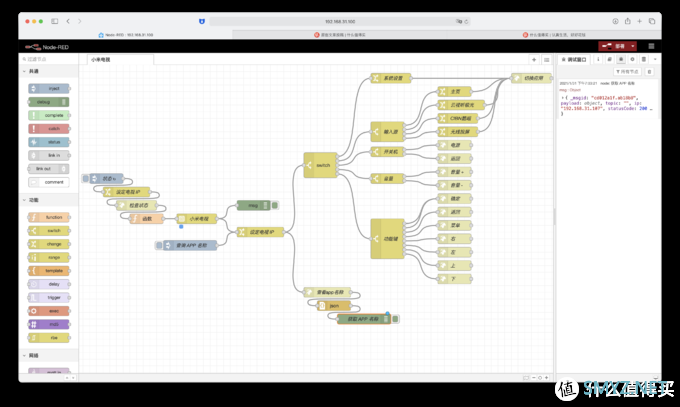

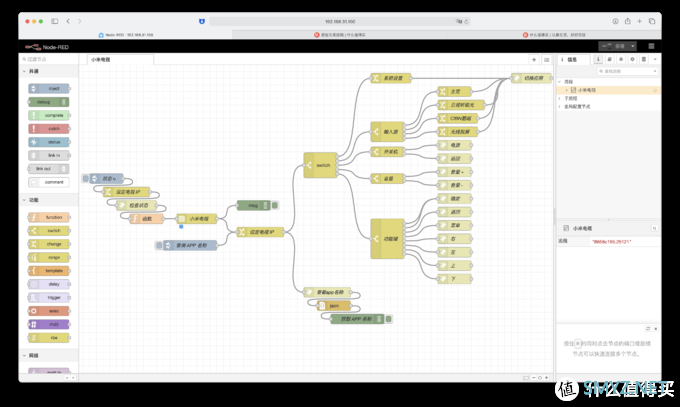

点击右上角三个横杠，点击导入，把上面的内容粘贴进去，选择新流程，点击导入，出现以下流程图，导入成功。

导入成功

简单分析一下这个流程图，中间的“小米电视”节点为“核心”节点，也就是一个HomeKit配件，其左边的是传入状态，其右边的是根据用户通过 HomeKit APP 操作后传出的相关指令，不懂也没有关系，可以先去了解一下Node-RED，如果只是为了小米电视的话，跟着我改就行。

修改电视机IP

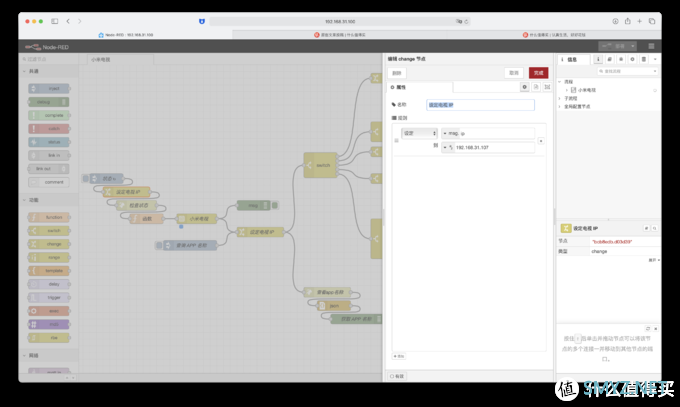

找到其中两个名为“设定电视 IP”的节点，双击，将IP地址改为你电视机的IP地址，两个节点都这么处理。

修改IP

点击右上角“部署”来保存。

点击红色的“部署”

打开电视机，等它开机后，点击右上角BUG图标进入DEBUG。

DEBUG

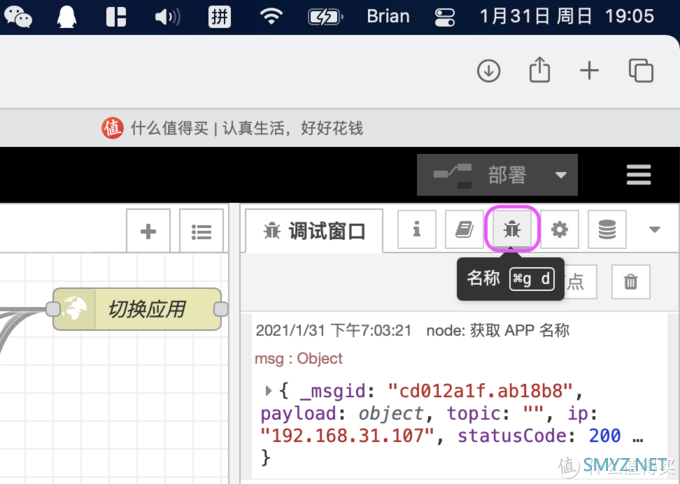

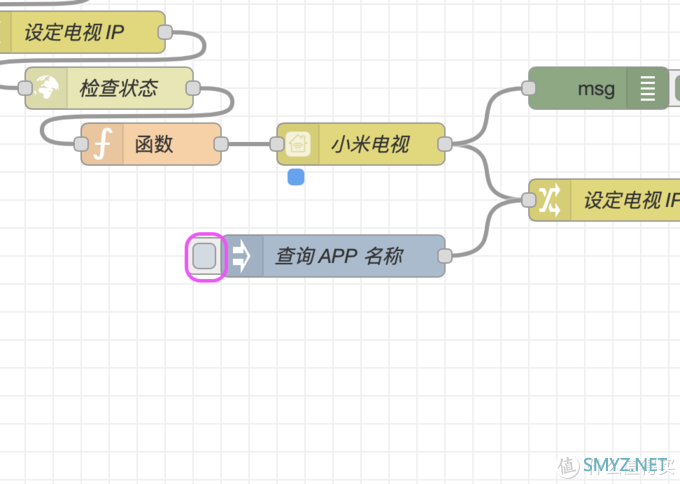

点击“查询APP名称”节点前的小方块执行，如果右侧栏DEBUG区域能返回上图msg，则说明连接成功，进入下一步。

查询APP

修改输入源（APP）

HomeKit电视机出了左图的控制器以外，还支持如右图的输入源切换，这个是可以手动设置的，只要滚动选择器，电视机上就能直接打开对应APP，无需通过遥控器找。

HomeKit

获取应用名称

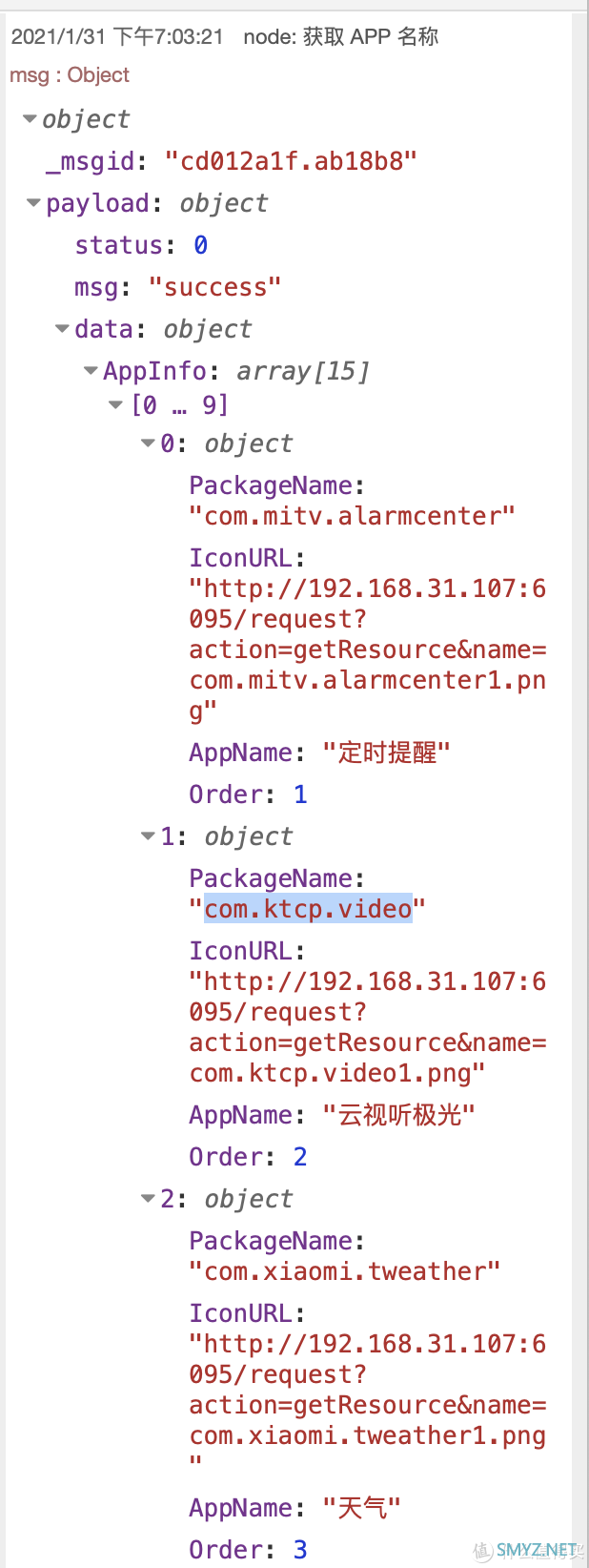

还记得刚才的 DEBUG 信息吗？如下图展开信息，其中的“PackageName”就是应用名称，在这步，记下你需要的所有 APP 的名称。

APP名称

设置 APP 切换

如果你和我一样也是主页（爱奇艺）+腾讯+优酷+投屏，那就不用改了。

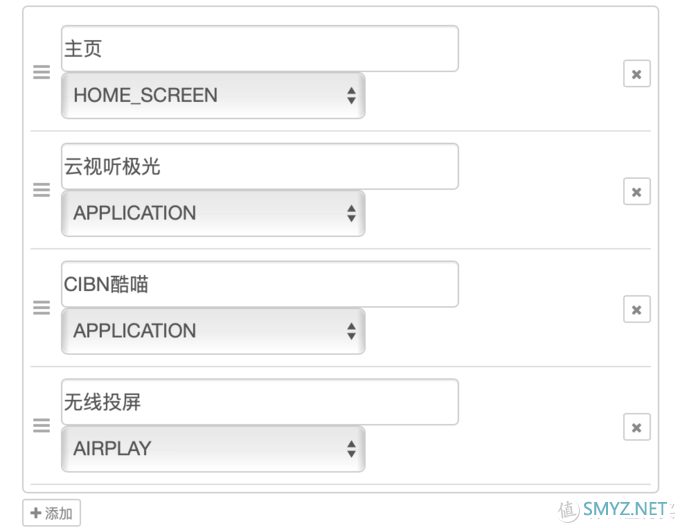

双击“小米电视”节点，增删改显示在HomeKit UI上的切换器名称和类型（类型不重要，好像看不出来有啥用），并记住顺序，点击“完成”保存。

增删改

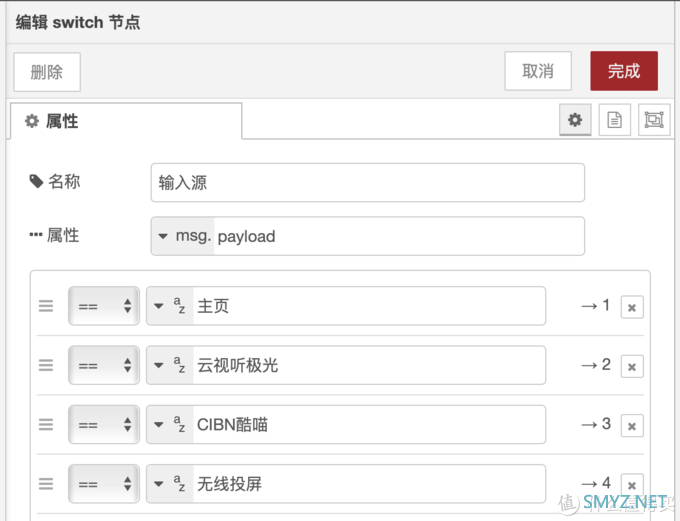

双击“输入源”节点，按照顺序修改名称，一定要一模一样，因为 HomeKit 节点会发一个UI上的名称过来，在这里进行匹配分流到之后的节点，这里的1、2、3、4对应节点后面的四个接口，也可以根据需要添加更多，点击“完成”保存。

注意⚠️：“主页”按钮不建议修改，容易出问题，名字可以改，内容最好不要动。

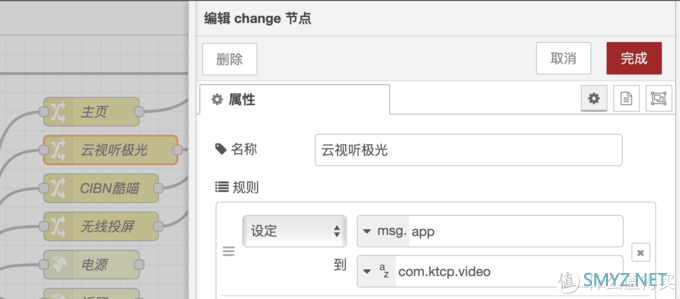

一一对应设为头图双击后面的节点，按照之前的顺序，修改名称和APP名称，就是下面的“com.xxx.xxx”，如果节点不够，可以 “Ctrl C”、 “Ctrl V”拷贝粘贴更多节点，用鼠标连接相应的线即可，最后几个 APP 都需要与后面的“切换应用”节点相连。

修改APP名称

完成后点击“部署”

导入HomeKit

双击“小米电视”核心节点，下面会出现一个二维码，用HomeKit扫描即可，会出现关机按钮和切换器。

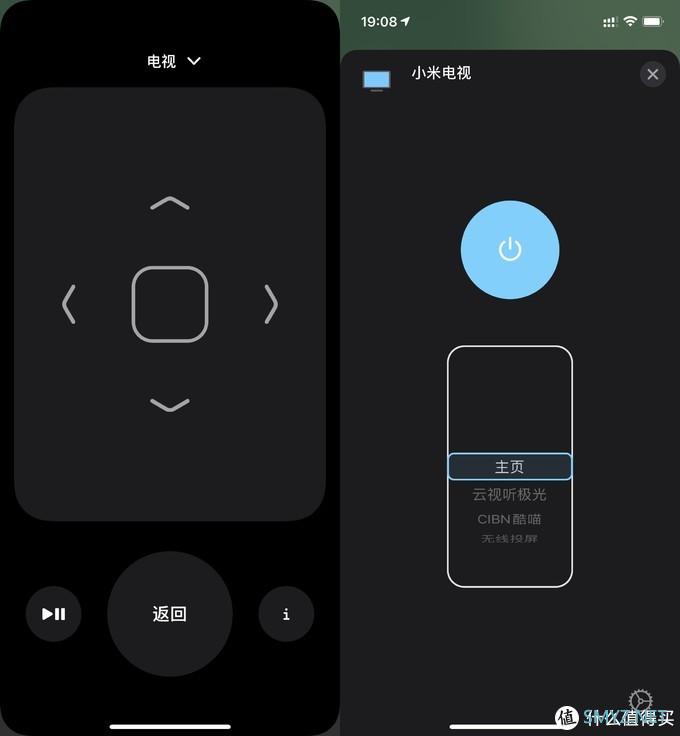

遥控器的话下拉iPhone的控制中心，最下面会出现 Apple TV 遥控器，如果没有，进入设置、控制中心，添加即可。

遥控器/切换器

代码预设1分钟更新一次状态，也就是说如果使用普通遥控器开启电视，HomeKit会在1分钟更新为开机。
